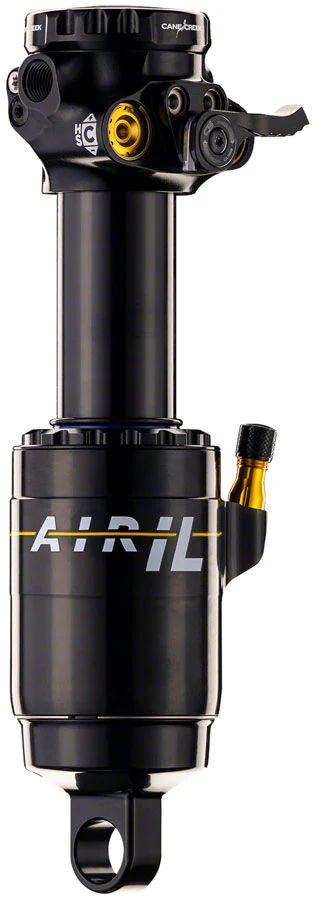

Cane Creek Air IL Next Gen Rear Shock - 190 x 45mm Black
Cane Creek Air IL Next Gen Rear Shock - 190 x 45mm Black. The Air IL Next Gen shock packs class-leading performance in a smaller and stronger package featuring a thicker inner damper tube for increased strength and a 17mm reduction in overall width on the valve body to increase fitment possibilities on tight frames. The Class-leading externally adjustable DB Twin Tube technology provides the widest range of 4-way damping adjustability on the market - designed to bring a new level of control to XC and Trail Bikes.6mm reduction in the outer diameter of the Air spring to further increase the likelihood of fitment while increasing the max psi pressure up to 350psi (Up from 300psi)
4-Way independent adjustment - high and low speed compression high and low speed rebound
Twin-tube damping for unparalleled small bump compliance
Climb switch lessens low-speed compression and rebound damping at the same time for improved climbing traction
Hand assembled and Individually dyno-tested
- TECH SPECS
| Stroke (mm) | 45 |
| Metric | Yes |
| Lockout Switch | Climb Switch |
| Weight | 280 |
| Eyelet Diameter (mm) | Trunnion |
| Eyelet Diameter (mm) | 12.7 |
| External Adjustments | High Speed Compression Damping |
| External Adjustments | Low Speed Compression Damping |
| External Adjustments | Rebound Damping |
| External Adjustments | Coil Preload |
| Positive Spring | Coil |
| Eye to eye length (mm) | 190 |
